Brief Introduction
Beta 2.5 |
With the iVision HD, manufacturer Digital Projection offers a home cinema DLP projector with HDTV 1280 x 720 resolution and a contrast of 2300:1 f. The projector can illuminate a picture width of up to 321 cm thanks to its 1000 Ansi lumens. In room light, however, the image width should ideally be less than 214 cm. The projector is very quiet compared to others with an operating noise of 28 decibels. It is no longer offered by the manufacturer Digital Projection.
|
| Display Type |
1 x Dark Metal DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
444 Lux (200 cm Screen width) |
| Contrast |
2300:1 full on/offf |
2300:1 full on/offf
|
| Black Level |
0,4348 min. Lumen |
0,193 min. Lumen |
| Offset |
-
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel |
| Video Modes |
HDTV, NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM; 1080i, 720p, 576i/p, 480i, 480p, |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

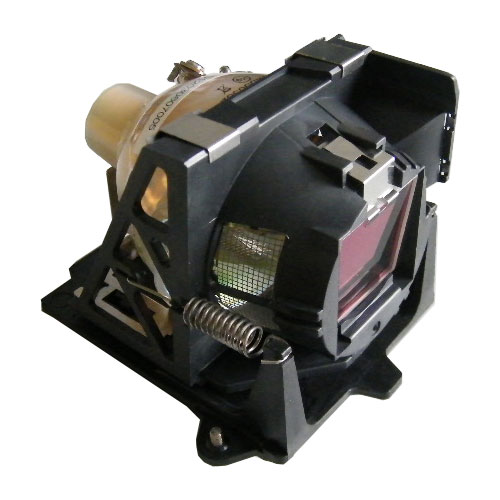

250W UHP Lamp
Article Nr.: iVISION HD
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
444 Lux |
|
Room light max.: |
89 Lux |
|
Candela pro m²: |
140 cd/m² |
|
Foot-Lamberts: |
41 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
- |
| Zoom |
- |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
2 x YUV in
DVI-D mit HDCP in
S-Video in
Cinch Video in
Mini Jack in und out
USB in
RS232 9-pin D sub
D-sub 15pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W |
| Size WxHxD |
244 x 88 x 278 mm (9,6"x3,5"x10,9") 5,97 L/dm³
|
| Operating Noise |
28dB |
|
| Weight |
3,00 kg / 6,61 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 120 kHz
V-sync: 50-110 Hz
|
| Foot-Lamberts |
41 fL
/ max. 321 cm screen width |
| Candela m² |
140 cd/m² |
| Features |
 Freeze
Gamma correction
Remote control with mouse control
6-segment colour wheel
Faroudja™ De-interlacing with film mode (3:2 and 2:2 pulldown)
|
|
- |
In Comparison
The Digital Projection iVision HD compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
73 |
| Black level: |
|
95 |
Power cons.: |
|
92 |
| Picture Total Points: | 35 |
Projector Total Points: | 88 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
582 (From: 984) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 1:1 | 1:1 | 200 m |
|
|
No Zoom |
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-09-20
|
